HL-EL-LED Helipad Elevated LED Light Heliport Perimeter Light

Microlux perimeter lights are the most important safety feature on your helipad. Our lights illuminate the edges of the landing area to provide a true perimeter marking. Pole mounted perimeter lights attach directly to the surface with your attachment hardware.

Colour: Green, Blue, White, Yellow, Red

Description

Microlux heliport perimeter lights provide an LED based solution to the ICAO touchdown and lift-off area perimeter style of steady-burning lights. The lights are currently available in blue, green, yellow, red or white LEDs operating at 120, 240, 277 VAC or 12, 24 VDC. Each configuration is available as original equipment or as direct lens/lamp field retrofit to existing conventional light bases. This fixture may be mounted on a base plate, junction box or stake.

Use:

  • FATO
  • Approach lighting
  • Taxiway edges
  • Point marking
Technical Specifications
The lamp cover adopts UV stabilized Polycarbonate material of excellent impact resistance, high transparency Corrosion resistant.
Light source adopts the international advanced LED featuring low power consumption, high efficiency
LED life rated up to 70,000 to 100,000 hours
95% less power than an equivalent incandescent light
3-watts (optional: 10W)
Resistant to shock and vibration
Direct replacement for existing incandescent lighting
Waterproof: IP66
Operating Voltage: 12-24VDC, 120-240VAC, 50/60Hz
Operating Temperature: -30o C ~ +60o C

Optional: Pre-wired Junction Box, Marine Proof Powder Coating

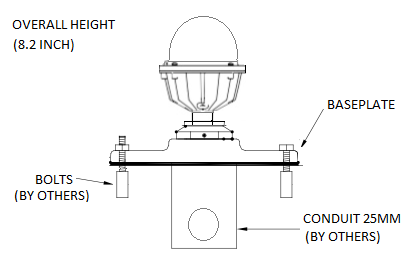

Drawing & Wiring
Helipad Elevated LED Light
Helipad Elevated LED Light
